Our KS2B Double Point Straight Side Mechanical Presses employ a monoblock frame design, built to precise JIS 1st Class standards. With a heat-treated one-piece frame stress-relieved after construction, the KS2B mechanical press is built on a solid foundation to provide decades of service. The pinion gear and main drive gears run in a self-contained oil bath. Counter-rotating main gears and connecting rods eliminate side thrust loads. Eight full-length slide guides provide for accurate alignment and movement of the slide, extending die life.

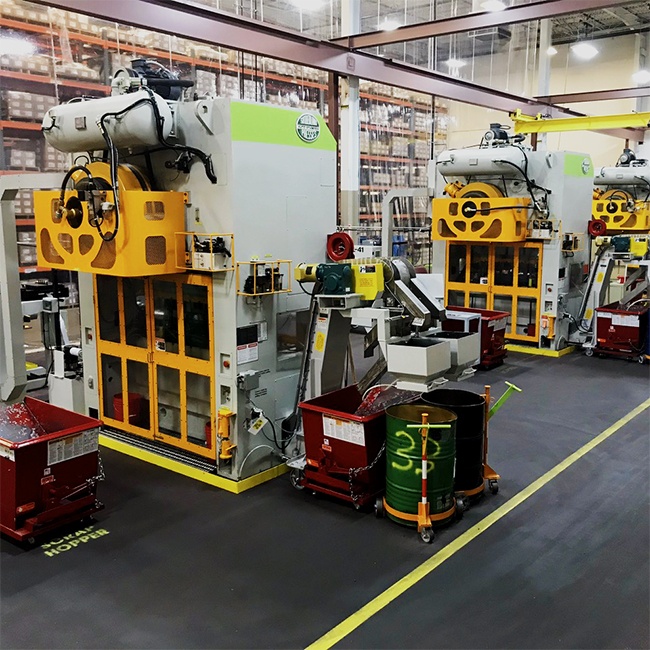

KS2B double point straight side stamping press machine 121-550 ton. Monoblock frame design, built to JIS 1st Class standards. Metal forming solutions that work.REQUEST A QUOTE

SERVICE, WARRANTY & SUPPORT

Learn more >
KS2B double point straight side stamping press machine 121-550 ton. Monoblock frame design, built to JIS 1st Class standards. Metal forming solutions that work.

FEATURES & COMPONENTS

Installation & Service

Trucking, rigging & foundation upon request
Technicians for press start up and training
Preventative Maintenance Programs at 6-12 months
3-2-1 Warranty based on multi-shift use

Pneumatic

Ross safety lock out valve
Frames are stress relieved after welding
SMC liquid filled gages
SMC regulators & lubricators
NOK seals & packings
Ross DM series DSV dual safety valve
Hi Torque combination clutch & brake
Air pressure switch monitored at control
Air counter balance cylinder for upper die weight
Flywheel brake for safe entry to die area

Mechanical

Robust fabricated steel frames
Frames are stress relieved after welding
NTN Bearings on high speed shafts
Gears run in self-contained oil bath
High compression bronze bushings
Crankshafts are rated for 150% capacity
Three piece connecting rod w/ alloy insert
Motorized slide adjustment (66 ton & above)
Six & eight point full length slide guides
T-Slotted bolster & slide for die clamping

Lubrication

IHI automatic grease lubrication
Recirculating Oil Systems (larger presses)
IHI electrically monitored lube distribution blocks
Bijur automatic air-counter balance oiler

Safety Equipment

Adjustable Safety Die Block Electrically Interlocked to Emergency Stop Circuit
Flywheel Brake for Quick Stopping of Flywheel during during die maintenance or die change
Light Curtains for FRONT & REAR 40" (optional)
Light Curtains for FRONT & REAR 30" (optional)

‍

Standard Features

Rotary Encoder with Time & Distance Brake Monitor
Floor Mounted MEP-Main Panel
20% Open Space in MEP for future items
Mobile T-Stand Run Station
Motorized Slide Adjustment with Mechanical Read Out
OMPI Combination Dry Clutch and Brake with Dual Safety Air Valve
Automatic Lubrication System with Electronic Monitor
Cycle Switch
Automatic Air Counter Balance Oiler
Automatic Air Counter Balance Oiler
Hydraulic Overload System (HOLP) integrated with a key switch located on MOS Operator Control

Mobile T-Stand
Run Station

Press Control

Omron Platform (included)
9" Color Touch Screen
Tonnage Monitor (optional)
on
Rockwell AB Platform (optional)
10" Color Panel View Touch Screen
Tonnage Monitor (included)
Hanging Swivel MOS / Master Operation Station
I-PRESS® user Friendly Easy Navigation Screens
I-PRESS® Connected Enterprise for Remote Login
200 Job Memory Storage (expandable)
12 Cams Programmable & Nameable
16 Die Monitor Outputs Programmable & Nameable
Fault Monitors to Protect Press, Automation & Tooling
Stroke  Position & Speed Indicator on Main Run Screen
Brake Monitor with Stopping Time Readout
Variable Speed Drive Programmable by Job

I-PRESS®
Press Control
