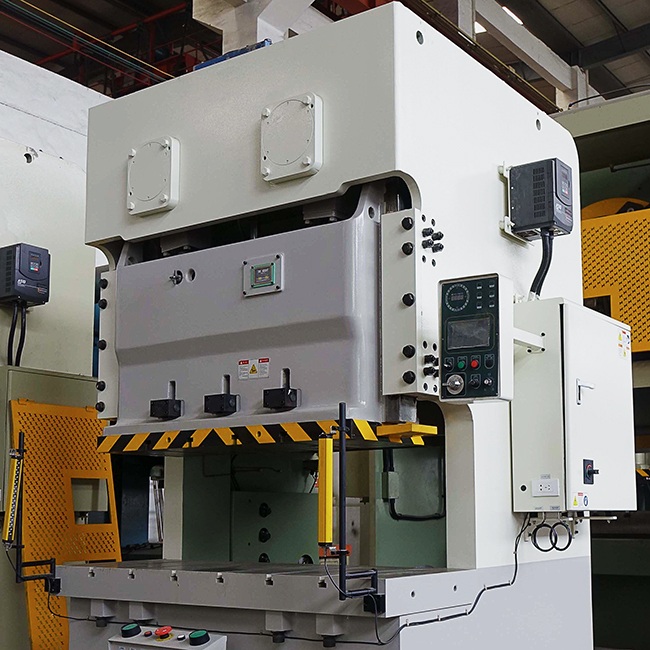

The KC2 series of double point gap frame mechanical presses are available from 88 to 330 ton capacity. These presses feature large area bolsters to accommodate a wide range of tooling and jobs. Counter-rotating double cranks direct the tonnage towards the center of the slide and bolster. The KC1 gap frame mechanical press is built to last, incorporating heat-treated frames machined to JIS 1st Class Standards, keyed HOLP, crankshafts rated for 150% overload, and a self-contained oil bath for the pinion and main gear.
KC2 Series mechanical stamping presses double point wide bed gap frame 88-330 ton capacity. Metal forming technology to meet your demands.REQUEST A QUOTE

SERVICE, WARRANTY & SUPPORT

Learn more >
KC2 Series mechanical stamping presses double point wide bed gap frame 88-330 ton capacity. Metal forming technology to meet your demands.

FEATURES & COMPONENTS

Installation & Service

Trucking, rigging & foundation upon request
Technicians for press start up and training
Preventative Maintenance Programs at 6-12 months
3-2-1 Warranty based on multi-shift use

Mechanical

Robust fabricated steel frames
Frames are stress relieved after welding
NTN Bearings on high speed shafts
Fully guarded High & Low speed gears
High compression bronze bushings
Eccentric shafts are rated for 200% capacity
Massive Pitman Slide Connection
Motorized slide adjustment
Eight point full length slide guides
Single or Multi-Station Die Holders (Opt)

Pneumatic

Ross safety lock out valve
SMC liquid filled gages
SMC regulators & lubricators
NOK seals & packings
Ross or Taco DSV dual safety valve
Hi Torque separate clutch & brake
Air pressure switch monitored at control
Air counter balance cylinder for upper die weight
Flywheel brake for safe entry to die area
Air ejector tied to cam for part removal

Hydraulic

Unsticking device under slide adjustment screw
Keyed un-sticking near BDC
Tank & pump at floor level
Lower Ejector Std, Upper (Opt)

Lubrication

IHI automatic grease lubrication
Recirculating Oil Systems (larger presses)
IHI electrically monitored lube distribution blocks
Bijur automatic air-counter balance oiler

Safety Equipment

Adjustable Safety Die Block Electrically Interlocked to Emergency Stop Circuit
Flywheel Brake for Quick Stopping of Flywheel during
Light Curtains for FRONT & REAR 40" (optional)
Light Curtains for FRONT & REAR 30" (optional)

Standard Features

Rotary Encoder with Time & Distance Brake Monitor
Floor Mounted MEP-Main Panel
20% Open Space in MEP for future items
Mobile T-Stand Run Station
Motorized Slide Adjustment with Mechanical Read Out
OMPI Combination Dry Clutch and Brake with Dual
Safety Air Valve
Automatic Lubrication System with Electronic Monitor Cycle Switch
Automatic Air Counter Balance Oiler
Hydraulic Overload System (HOLP) integrated with a key switch located on MOS Operator Control

Mobile T-Stand
Run Station

Press Control

I-PRESS® FORGE Press Control user Friendly Easy Navigation Screens
10” HD Color Touchscreen
Connected Enterprise for Remote Login
Realtime Status Readouts
Hanging Swivel MOS / Master Operation Station
Tonnage Monitor
200 + Job memory
12 Programmable cams
16 Die monitors
130 separate function monitors
Fault Monitors to Protect Press, Automation & Tooling
Step-by-step fault diagnostics
Operator and supervisor access levels
Performance Level D, Category 3 safety functions
Operator/ Maintenance documentation viewable via pdf
User customizable PLC access
Ethernet I/P Connectivity

I-PRESS® FORGE
Press Control
